Sensitivity tutorial: ERANOS files

This notebook reads the ERANOS ECCO-33 sensitivity file for the ALFRED model. ERANOS tables are printed in high-to-low group order, while pyNDUS stores the parsed profiles in ascending energy order.

import os
import sys
import tempfile
from pathlib import Path

os.environ.setdefault("MPLCONFIGDIR", str(Path(tempfile.gettempdir()) / "matplotlib"))

def find_project_root(start: Path | None = None) -> Path:
    """Find the pyNDUS repository root."""
    start = (start or Path.cwd()).resolve()

    for directory in (start, *start.parents):
        if (
            (directory / "setup.py").is_file()
            and (directory / "src" / "pyNDUS").is_dir()
            and (directory / "docs" / "tutorials").is_dir()
        ):
            return directory

    raise FileNotFoundError(
        f"Could not find the pyNDUS repository root starting from {start}"
    )


PROJECT_ROOT = find_project_root()
DATA_ROOT = PROJECT_ROOT / "docs" / "tutorials"
assert DATA_ROOT.exists(), f"Tutorial data directory not found: {DATA_ROOT}"

SENS_ROOT = DATA_ROOT / "MG_sensitivities"
COV_ROOT = DATA_ROOT / "MG_covariances"
assert SENS_ROOT.exists(), SENS_ROOT
assert COV_ROOT.exists(), COV_ROOT

import numpy as np
import pandas as pd
import matplotlib.pyplot as plt

from pyNDUS import Sensitivity

eranos_file = SENS_ROOT / "eranos" / "alfred.eranos33"
sens = Sensitivity(eranos_file)

assert sens.reader == "eranos"
assert sens.energy_unit == "eV"
assert sens.n_groups == 33
assert np.all(np.diff(sens.group_structure) > 0.0)
assert sens.sens_rsd is None

print(f"responses: {sens.responses}")
print(f"materials: {len(sens.materials)}")
print(f"nuclides: {len(sens.zais)}")
print(f"MTs: {list(sens.MTs.keys())}")

responses: ('keff',)
materials: 40
nuclides: 545
MTs: [2, 4, 18, 102, 106, 452]

Metadata overview

pd.DataFrame({
    "materials_sample": list(sens.materials.keys())[:10],
    "nuclides_sample": list(sens.zais.keys())[:10],
})

	materials_sample	nuclides_sample
0	FOOT_I	B-10
1	DIAG_I	B-11
2	FOOT2_I	C-12
3	DIAG2_I	C-13
4	LOCK_I	N-14
5	RACK_I	N-15
6	BPLG_I	O-16
7	PLEN_I	Na-23
8	BINS_I	Mg-24
9	FINN	Mg-25

Extract a profile

REACTOR is the whole-system material summary. The following extraction retrieves the Pu-239 fission contribution to keff.

profile = sens.get(resp="keff", mat="REACTOR", za="Pu-239", MT=18)
profile_desc = sens.get(resp="keff", mat="REACTOR", za="Pu-239", MT=18,
                        group_order="descending",
                        )

assert profile.shape[-1] == sens.n_groups
np.testing.assert_allclose(profile_desc.reshape(-1), profile.reshape(-1)[::-1])

profile_table = pd.DataFrame({
    "E_upper_eV": sens.group_structure[1:],
    "Pu239_MT18_keff": profile.reshape(-1),
})
profile_table.head()

	E_upper_eV	Pu239_MT18_keff
0	0.10000	0.000004
1	0.54000	0.000060
2	4.00000	0.000197
3	8.31529	0.000180
4	13.70960	0.000194

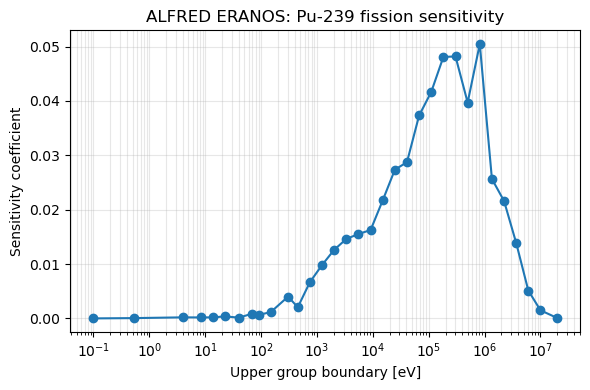

fig, ax = plt.subplots(figsize=(6, 4))
ax.plot(sens.group_structure[1:], profile.reshape(-1), marker="o")
ax.set_xscale("log")
ax.set_xlabel("Upper group boundary [eV]")
ax.set_ylabel("Sensitivity coefficient")
ax.set_title("ALFRED ERANOS: Pu-239 fission sensitivity")
ax.grid(True, which="both", alpha=0.3)
fig.tight_layout()

Compare domains

domain_norms = []
for material in sens.materials:
    values = sens.get(resp="keff", mat=material, za="Pu-239", MT=18).reshape(-1)
    domain_norms.append((material, float(np.linalg.norm(values))))

domain_table = pd.DataFrame(domain_norms, columns=["material", "profile_norm"]).sort_values(
    "profile_norm", ascending=False,
)
assert domain_table.iloc[0]["profile_norm"] >= 0.0
domain_table.head(10)

	material	profile_norm
39	REACTOR	0.127773
9	FINN	0.075792
23	FOUT	0.052011
30	ZEXT	0.000000
24	TINS_O	0.000000
25	SPRN_O	0.000000
26	TPLG_O	0.000000
27	FUNN_O	0.000000
28	DUMM	0.000000
29	BARL	0.000000
